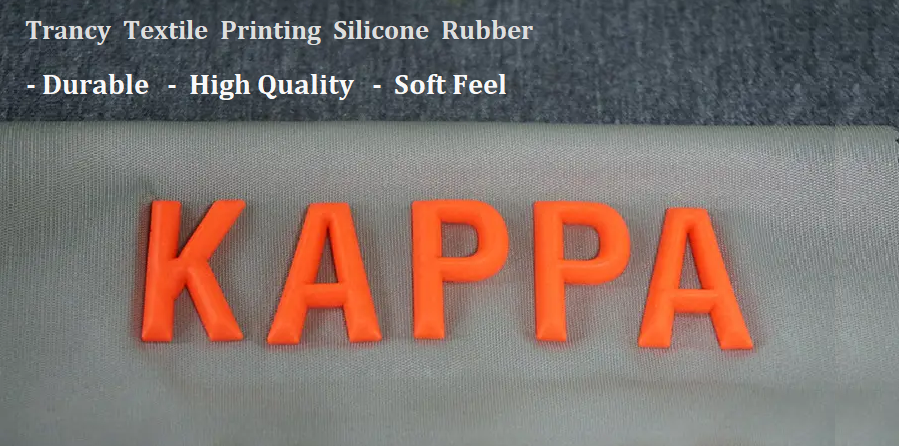

With the development of the screen printing market, clothing manufacturers are demanding for wash durability, longer screen life and soft hand feel. Trancy developed CX-8300 textile printing silicone rubber to meet the market demands. It deliveries durable, high quality and soft feel, because it features excellent mechanical properties, outstanding adhesion to fabrics, smooth, elastic and nontacky touch.
CX-8300 is a two-part platinum-catalyzed silicone rubber with mixing ratio of 100:2 by volume. It offers good fluidity, excellent mechanical properties, high tensile strength, high elongation, and adhesion to fabrics. It is easily used and resistant to high temperature, weather and aging. It delivers long-wearing with excellent wash durability. It is suitable for textile screen printing. We can offer custom products based on your special requirements.
Compared with competitive products, CX-8300 has lower viscosity, which provides better fluidity and rheology. It is good for automatic and manual screen-printing processes, and easier to used. Besides, CX-8300 has better mechanical propertises, including tensile strength, tear strength and elongation. They delivers better longer screen life and wearing with excellent wash durability.
Benefits
Two-part, 100：2, fast curing.
High transparency.
Excellent mechanical properties，high tensile strength and elongation.
Super adhesion to fabrics.
Accurate shapes，long-wearing with excellent wash durability.
Easily pigmented and used.
Resistant to high-temperature （up to 250℃, heat-resistant – ironable).
Weather resistant, ageing resistant.
Eco-friendly and safe.
Can be customized according to viscosity，hardness，cure times and pot life.
PARAMETER
UNIT
CX-8300-20
CX-8300-200
Appearance
Clear liquid
Clear liquid
Viscosity（25℃）
mPa s
5,000~40,000
200,000~250,000
Specific Gravity（25℃）
1.00~1.05
1.09~1.12
Mixing Ratio
%
A:B=100:2
A:B=100:2
Hardness
Shore A
25~35
35~40
Pot Life（25℃）
hours
≥5
≥5
Cure Time（100℃）
minutes
1
1
Tensile Strength
N/mm²
≥3.0
≥5.5
Tear resistance
N/mm
≥10.0
≥15.0
Elongation
%
≥200
≥500
The values presented are typical values and should not be used for specification purposes.
Applications
Sportswear
T-shirts
Jackets
Uniforms
